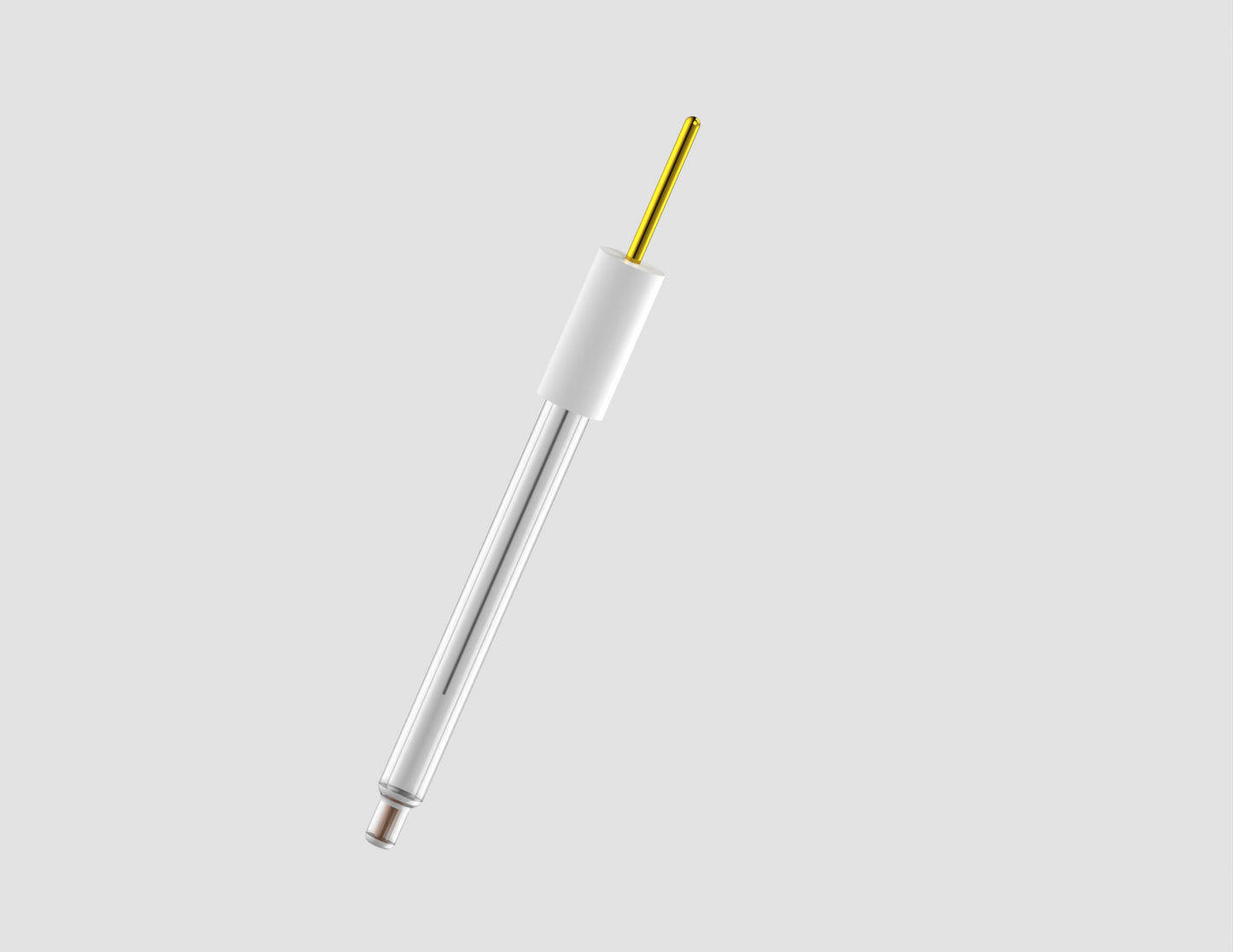

Ag/AgCl Reference Electrode

• Ideal for various electrochemical experiments, featuring an electrode with Ag/AgCl properties for versatile applications

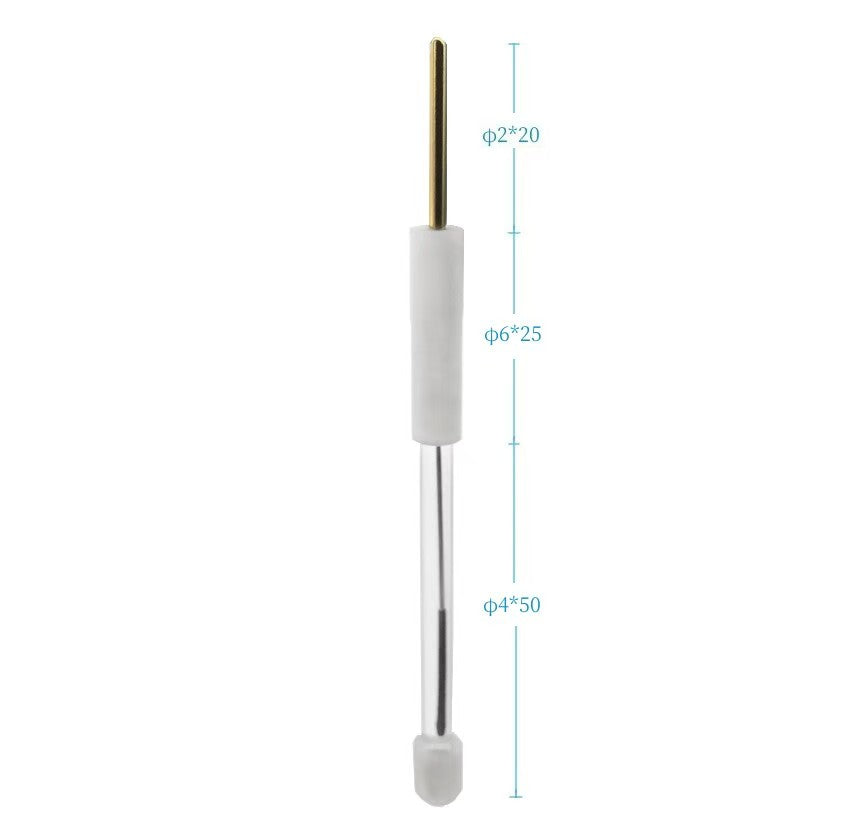

• Specs: With a total length of 95mm, the lower tube boasts a diameter of 4mm and a length of 50mm, providing precise dimensions for efficient utilization.
• Impedance: 5-10 kΩ
• Prior to use, it's necessary to prepare the electrode by filling it with a 3.5 mol/L KCl solution; conducting a preliminary test for accuracy is recommended before formal experimentation
• Caution: applicable temperature range for this electrode is 5 to 60°C; please adhere to the specified temperature limitations for optimal performance and safety

Instructions for Use:

1. To fill the 3.5 mol/L KCl solution, remove the PTFE adapter by pulling it out to access the filling point. (Please note: The 3.5 mol/L KCl solution is not provided and must be prepared by the buyer)


Storage and Maintenance:

1. Clean the surface of the electrode.
2. Empty the electrode and refill it with new saturated KCl solution.

3. Store it in a cool place.
4. For prolonged periods of non-use, it is recommended to change the KCl filling solution every 2-3 weeks for best performance.
